6000 LPH RO PLANT

6000 LPH RO PLANT

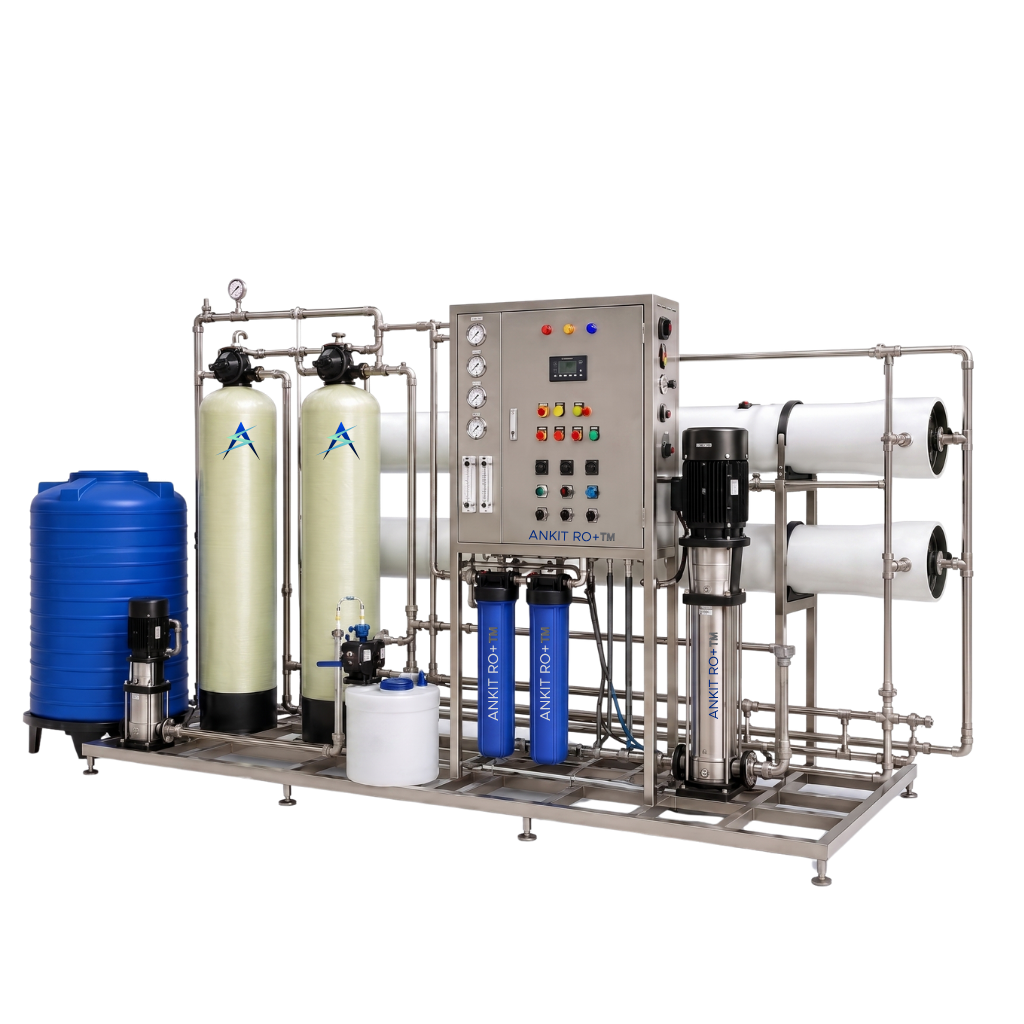

The Ankit RO+™ 6000 LPH RO Plant, manufactured by Ankit Sizing Pvt. Ltd., Ahmedabad, is a high-performance industrial reverse osmosis water purification system designed for large-scale industrial and commercial water treatment applications requiring continuous and reliable purified water supply.

Engineered using advanced membrane filtration technology, this RO plant efficiently removes TDS, dissolved salts, hardness, chemicals, bacteria, heavy metals, and other impurities from borewell, municipal, and tanker water sources. The system delivers consistent high-quality purified water suitable for pharmaceuticals, textile industries, food processing, hospitals, hotels, schools, manufacturing plants, and commercial facilities.

  • 6000 liters per hour high-capacity industrial water purification system
  • Designed for continuous heavy-duty industrial and commercial operation
  • Effective removal of TDS, dissolved salts, bacteria, and harmful contaminants
  • Suitable for borewell, municipal corporation, and tanker water sources
  • Energy-efficient operation with low maintenance requirements
  • Heavy-duty skid-mounted structure for long-lasting durability
  • Stable performance under varying inlet water and voltage conditions
  • Premium quality membranes, pumps, and electrical components
  • Manufactured and supported by Ankit Sizing Pvt. Ltd., Ahmedabad
Inquire Now

Technical Specifications – Ankit RO+™ 6000 LPH RO Plant

Raw Water PumpLubi / CRI / Equivalent – 5 HP, 50 Hz – SS Construction (1 No.)
Dual Media Filter21 x 62 FRP / Stainless Steel Vessel (2 Sets)
Filtration ValveMulti Port Valve – Distribution System (2 Nos.)
Chemical Dosing PumpEdos (Neo) / Equivalent – Diaphragm Type – 5 L/5 Kg Capacity (1 No.)
Dosing Tank100 Ltr. HDPE Tank (1 No.)
MCF Housing5 Micron Filter – 4” x 20” (1 No.)
High Pressure PumpLubi Multistage Pump – 10 M3/Hr with 120 Mtr Head – Three Phase, 50 Hz (1 No.)
Membrane Housing300 PSI – Side Port Vessel (1 No.)
Membrane Housing Size8” Diameter – 4 Element Long / 8” 2 Element – 2 Pcs
RO MembraneToray / LG Chem / Equivalent – PA Membrane – 10,000 GPD (3 Nos.)
Electric Control ModuleLogic Base Panel – 3.72 KW Load Capacity – Interconnected Cable Work (1 Set)
Flow MeterInlet & Outlet Flow – SS 316 / UPVC Float & Shaft (2 Nos.)
Pressure SwitchLP Range: 0.2 to 7 Bar – HP Range: 2.0 to 28 Bar (2 Sets)
Pressure GaugePanel / Bottom Type – SS Glycerin Filled – Approx. 4 Nos.
Piping & FittingsSS / UPVC
Flow Control ValveBall Valve Type
Level Sensor2 Nos.
Pressure PipeSS / UPVC
Amp Meter1 No.
SkidSS 304
