3000 LPH RO PLANT

3000 LPH RO PLANT

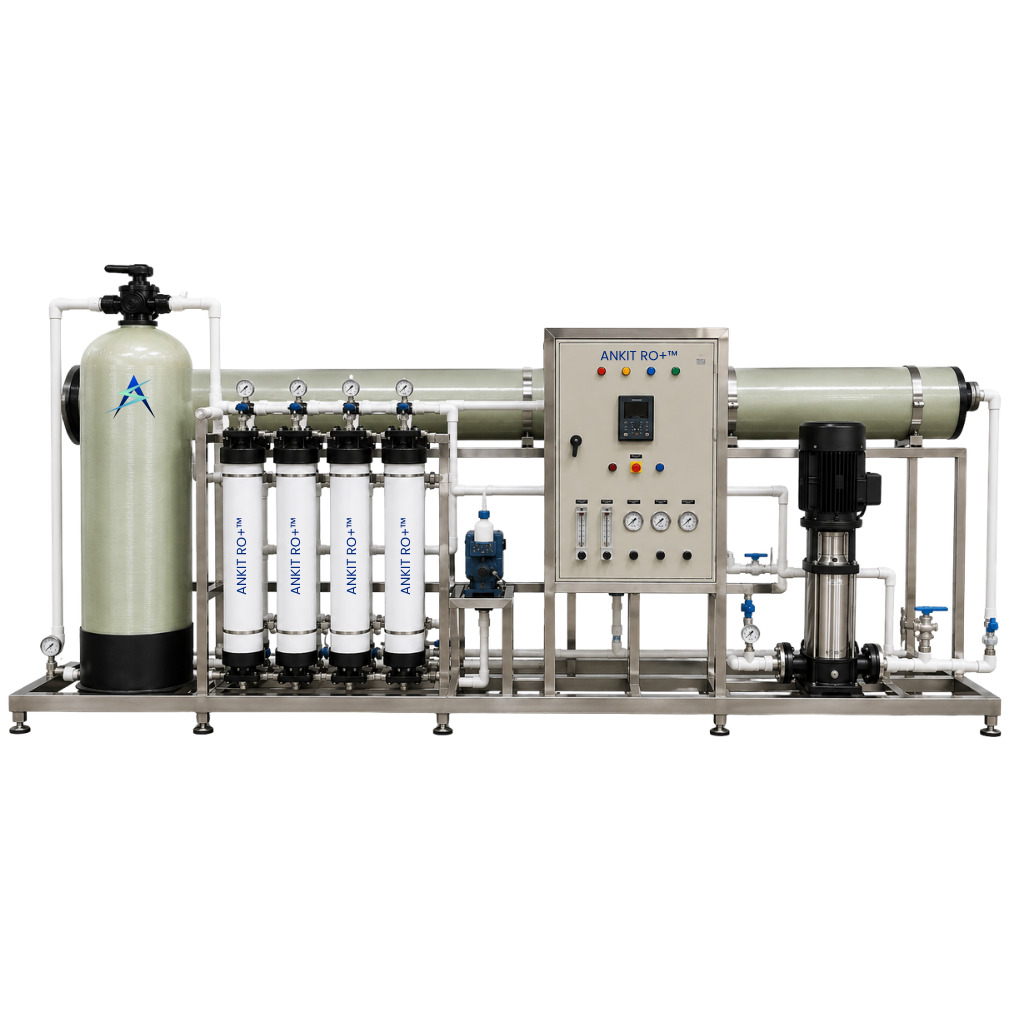

The Ankit RO+™ 3000 LPH RO Plant, manufactured by Ankit Sizing Pvt. Ltd., Ahmedabad, is a high-performance industrial reverse osmosis water purification system designed for medium to large-scale industrial and commercial water treatment applications requiring continuous and reliable purified water supply.

Engineered using advanced membrane filtration technology, this RO plant efficiently removes TDS, dissolved salts, hardness, chemicals, bacteria, heavy metals, and other impurities from borewell, municipal, and tanker water sources. The system delivers consistent high-quality purified water suitable for pharmaceuticals, textile industries, food processing, hospitals, hotels, schools, manufacturing plants, and commercial facilities.

  • 3000 liters per hour high-capacity industrial water purification system
  • Designed for continuous heavy-duty industrial and commercial operation
  • Effective removal of TDS, dissolved salts, bacteria, and harmful contaminants
  • Suitable for borewell, municipal corporation, and tanker water sources
  • Energy-efficient operation with low maintenance requirements
  • Heavy-duty skid-mounted structure for long-lasting durability
  • Stable performance under varying inlet water and voltage conditions
  • Premium quality membranes, pumps, and electrical components
  • Manufactured and supported by Ankit Sizing Pvt. Ltd., Ahmedabad
Inquire Now

Technical Specifications – Ankit RO+™ 3000 LPH RO Plant

Raw Water PumpLubi / CRI / Equivalent – 1.5 HP, 50 Hz (1 No.)
Dual Media FilterPentire / Tata / Equivalent – FRP Vessel – 24 x 72 (1 Set)
Filtration ValveMulti Port Valve – PVC – Distribution System (1 No.)
Chemical Dosing PumpEdos (Neo) / Equivalent – Diaphragm Type – 5 L/5 Kg Capacity (1 No.)
Dosing Tank HDPE100 Ltr. Capacity (1 No.)
MCF Housing5 Micron Filter – PVC – 20” Size (4 Nos.)
High Pressure PumpCRI Multistage Pump – 10 m3/hr with 120 Mtr Head – Three Phase, 50 Hz (1 No.)
Membrane HousingWilli Composite / Equivalent – 300 PSI – Side Port Vessel – FRP with High Gloss Polyurethane Coated (1 No.)
Membrane Housing Size80” x 40” – 4 Element Long (1 Pc)
Reverse Osmosis MembraneToray / LG Chem / Equivalent – PA Membrane – 10,000 GPD – 80 x 40 Size (3 Nos.)
Electric Control ModuleLogic Base – Inter Connected Cable Work – Standard Make (1 Set)
Flow MeterEster / Equivalent – Inlet & Outlet Flow – Polycarbonate – SS 316 / UPVC Float & Shaft (2 Nos.)
Pressure SwitchDanfoss / Equivalent – LP Range: 0.2 to 7 Bar – HP Range: 2.0 to 28 Bar (1 Set)
Pressure GaugePanel / Bottom Type – Pointer / Equivalent – SS Glycerin Filled – Approx. 4 Nos.
Piping & FittingsPre-Treatment: UPVC | High Pressure Line: SS / UPVC (Required Set)
Flow Control ValveBall Valve Type (Required Set)
Level Sensor2 Nos.
Pressure PipeRequired Set
NRVRequired Set
Amp Meter1 No.
Structure of SkidSS 202 / SS 304 / SS 316
