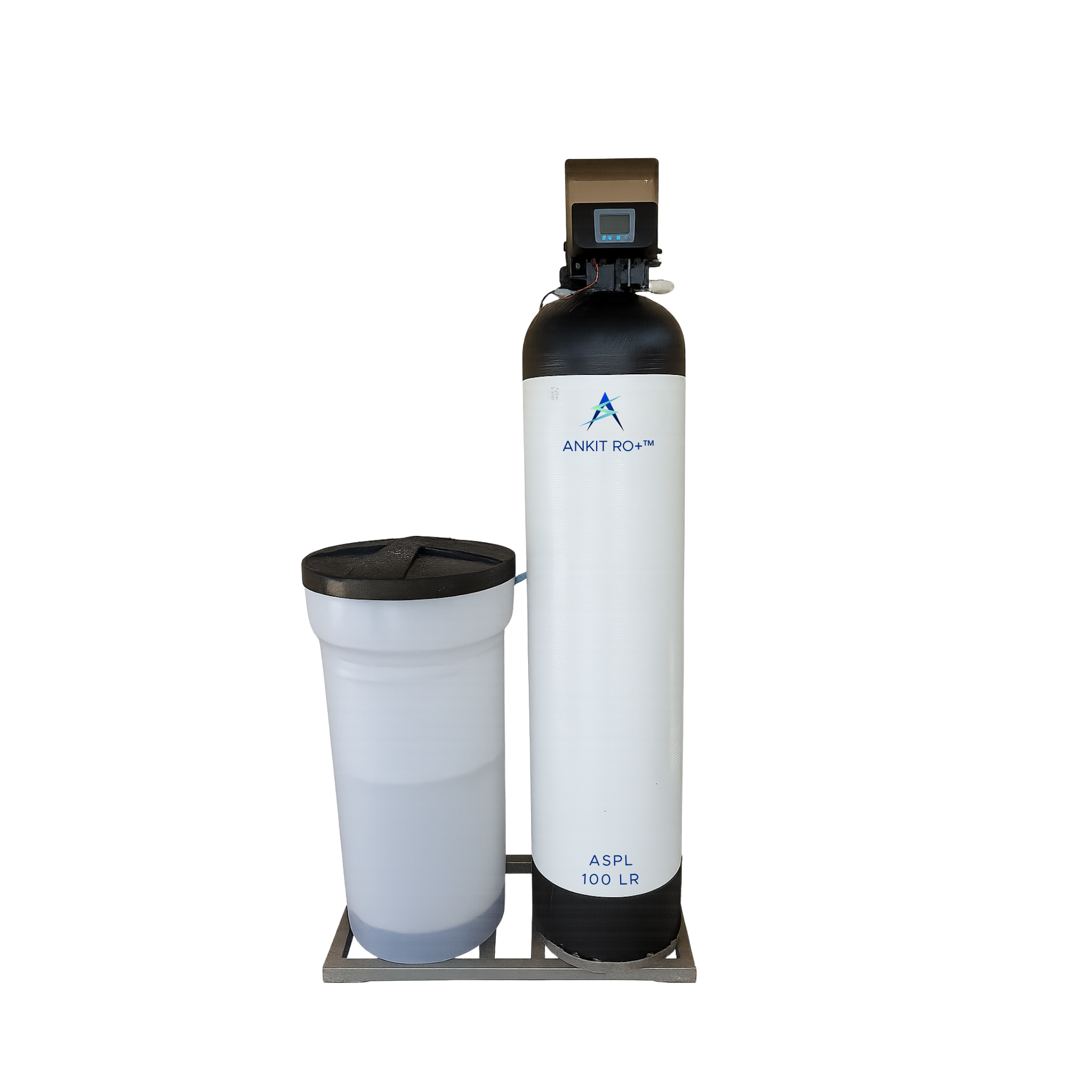

100 LR Water Softener Plant

The 100 LR Water Softener Plant by Ankit Sizing Pvt. Ltd., Ahmedabad is a compact, fully automatic water softening solution designed to remove hardness and prevent scale formation in pipelines, appliances, and fittings.

Engineered with advanced BFT microprocessor-controlled technology, this softener ensures reliable and continuous soft water supply for residential, commercial, and light industrial applications across Gujarat and India.

  • Resin Capacity: 100 Liters
  • Maximum Flow Rate: 3000 LPH
  • Fully automatic microprocessor-based operation
  • BFT Technology for automated regeneration
  • Brine tank with brine valve, brine well & perforated disk
  • Pressure relief & sampling valve included
  • Suitable for individual bungalows & small facilities
Inquire Now

Technical Specifications – 100 LR Water Softener Plant

Model100R BFT
Maximum Flow Rate3000 LPH
OBSA (Based on 200 ppm)75,000 Liters
OBR (Based on 200 ppm)18,750 Liters
Resin Tank Volume103 Liters
Resin Quantity75 Liters
Salt Tank Volume100 Liters
Salt Required / Regeneration12 kg
Salt Quantity (OBSA) / No. of Regeneration45 kg / 4
Working Pressure0.15 – 0.6 MPa
Inlet / Outlet Size1 Inch
Dimensions (mm)L830 × W480 × H1760
